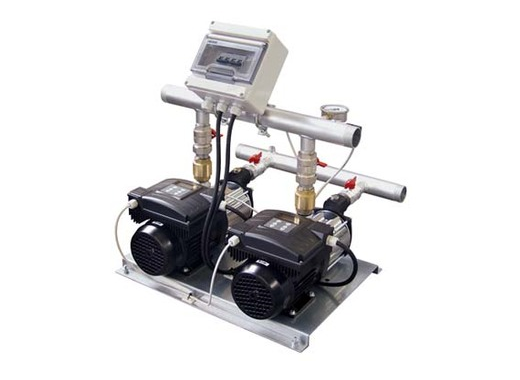

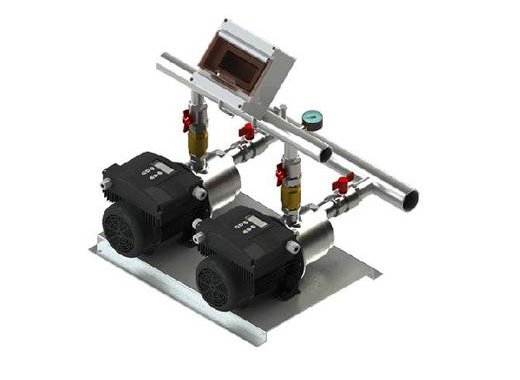

CPS20
PRESSURE BOOSTER SET WITH TWO VARIABLE SPEED PUMPSThe new series of variable speed pressurization booster set CPS20 represents a reliable solution which is easy to use, for residential and industrial applications. The system involves the installation in parallel of two inverters integrated directly on the motor of each pump installed. The two frequency converters communicate and alternate the starting order of each work cycle, always keeping the pressure constant in the distribution system.

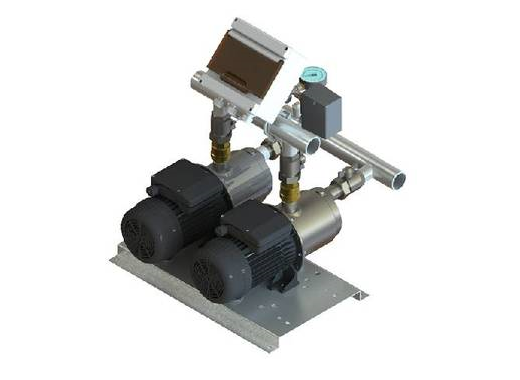

EASY20/MULTI EVO
PRESSURE BOOSTER UNIT WITH TWO ELECTRIC PUMPS WITH PRESSURE SWITCHCONTROLThese are units for the automatic pressurization of water supply networks with single phase electrical power supply composed of: 2 electric pumps, power board, base, intake and outlet manifold, pressure switches, gauge and outlet retainer valve.

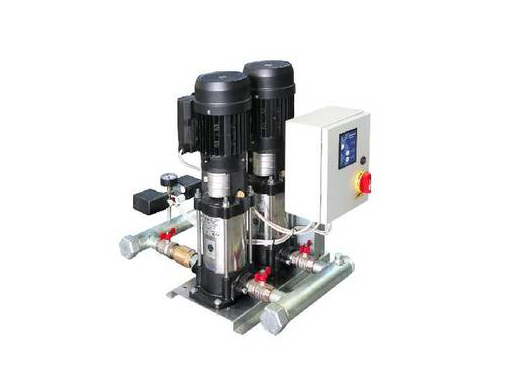

EASYBOOST
RESIDENTIAL - PRESSURE BOOSTERS WITH PRESSURE SWITCH CONTROL, COMPACT, ROBUST, HIGH HYDRAULIC PERFORMANCE, RELIABLEThese are units for the automatic pressure boosting on water distribution networks with single phase power supply, comprising: 2 electric pumps, electrical panel, base, suction and delivery manifolds, pressure switches, pressure gauge, delivery check valve.

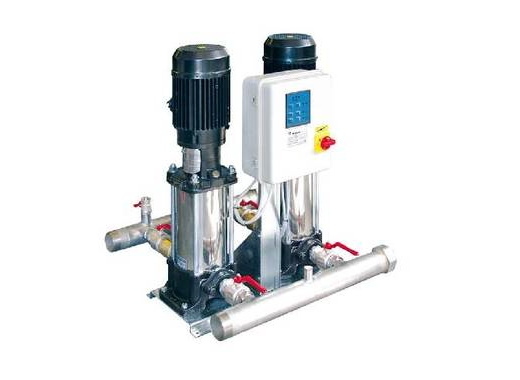

PRESSOMAT
INDUSTRIAL - PRESSURE BOOSTERS WITH PRESSURE SWITCH CONTROL, HIGH HYDRAULIC EFFICIENCY, ROBUST, PIPELINES IN AISI 304 STAINLESS STEELThese are automatic pressure booster sets on distribution mains with electric single phase and three phase power supply. The pumps are controlled by two differential pressure switches with adjustable settings, connected to the analogue electronic board via an electrical panel.
MULTI EVO
CENTRIFUGAL MULTISTAGE ELECTRIC PUMPSMulti EVO is a horizontal multistage centrifugal electric pump with an axial threaded suction port and a radial threaded discharge port. The innovative, high-efficiency hydraulic system is connected to a latest generation motor with mechanical seal. All models are certified for use with household water (ACS)
MULTINOX-VE+
VERTICAL MULTI-CELL CENTRIFUGAL PUMPS, SUPERIOR HYDRAULIC EFFICIENCY,ROBUST AND RESISTANTThe MULTINOX-VE+ series of vertical multi-cell centrifugal pumps are the ideal solution for use in lifting stations, above all where optimal performance and silent operation are needed with a compact overall layout.

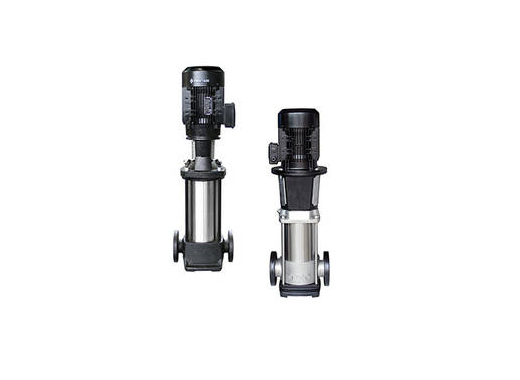

PVM-PVMI-PVMX
VERTICAL MULTISTAGE CENTRIFUGAL PUMPS High hydraulic efficiency, Motor designed to EN standardsThe PVM, PVMI, and PVMX are non-self-priming vertical multistage pumps of in-line design, flange, or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers, and pressure casing. The pump stub shaft and the motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with high-efficiency motors (IE3) and with a cartridge-type mechanical seal for easy maintenance. PVM, PVMI, and PVMX pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.

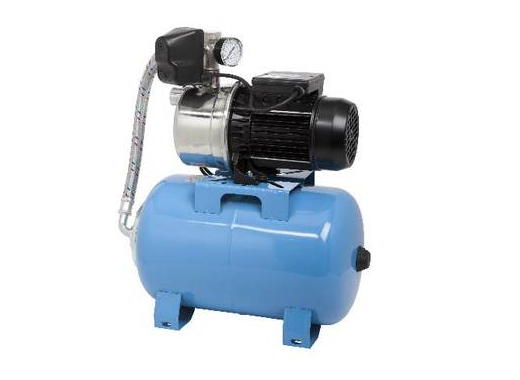

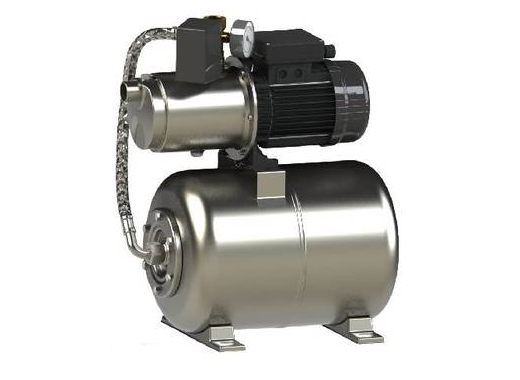

PRESSURE UNITS WITH 24-LITER HORIZONTAL EXPANSION TANK
The WATERPRESS pressure boosters are designed with self-priming centrifugal pump models JET. They are supplied rewired and complete with stainless steel expansion tank.

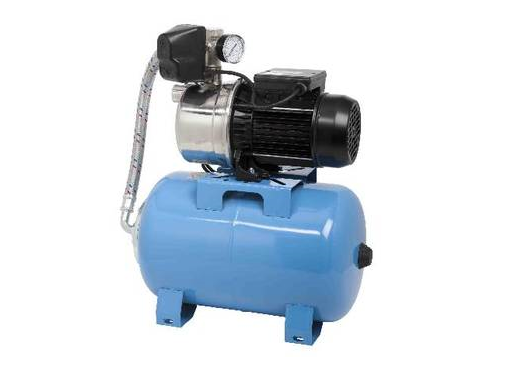

PRESSURE UNITS WITH 24-LITER HORIZONTAL EXPANSION TANK
The WATER PRESS INOX pressure boosters are designed with self-priming centrifugal pump models JETINOX or MAX. They are supplied rewired and complete with stainless steel expansion tank.

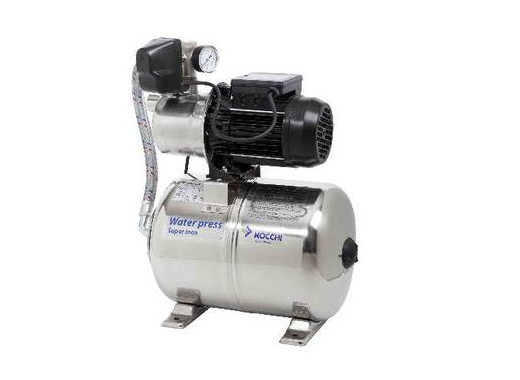

PRESSURE UNITS WITH 24-LITER HORIZONTAL EXPANSION TANK
The WATER PRESS SUPERINOX pressure boosters are designed with self-priming centrifugal pump models JETINOX or MAX. They are supplied rewired and complete with stainless steel expansion tank.
